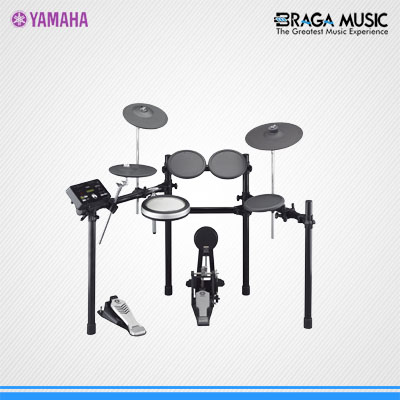

DTX522K
INFORMASI PRODUK
Rp 10.600.000
Rp 9.010.000
Fitur
Configration

Module: DTX502
Snare : XP80
Tom: TP70 x 2
Floor Tom: TP70
Bass Drum : KP65
Hi-Hat : PCY100 + HH65
Crash Cymbal: PCY100
Ride Cymbal : PCY135
Rack : RS502
Module: DTX502
Snare : XP80
Tom: TP70 x 2
Floor Tom: TP70
Bass Drum : KP65
Hi-Hat : PCY100 + HH65
Crash Cymbal: PCY100
Ride Cymbal : PCY135
Rack : RS502
NEW! Powerful DTX502 Drum Trigger Module
The DTX502 has almost twice the wave ROM and over 250 more sounds than its predecessor and features
new drum and cymbal samples from top VST developers that have been optimized for DTX. Also voices
inherited from our other DTX modules have been updated for improved playability and sound.
The DTX502 has almost twice the wave ROM and over 250 more sounds than its predecessor and features
new drum and cymbal samples from top VST developers that have been optimized for DTX. Also voices
inherited from our other DTX modules have been updated for improved playability and sound.
Advanced Technology Under The Hood
Using proprietary laser technology to analyze drum strokes, we precisely tuned the trigger settings
on the DTX502 series resulting in a more natural feeling with laser accuracy. You also get advanced
features from our higher end models like cymbal muting, natural cymbal swells, and smoother snare
drumrolls so the kits respond to every nuance of your playing, and 3-Zone hi-hat technology when using
the PCY100 as a hi-hat pad.

Using proprietary laser technology to analyze drum strokes, we precisely tuned the trigger settings
on the DTX502 series resulting in a more natural feeling with laser accuracy. You also get advanced
features from our higher end models like cymbal muting, natural cymbal swells, and smoother snare
drumrolls so the kits respond to every nuance of your playing, and 3-Zone hi-hat technology when using
the PCY100 as a hi-hat pad.
3-Zone Cymbals with “Choke” Feature Deliver Realistic Expression!

The DTX522K also features our professional
3-zone cymbal pads, which can
express a different sound in each of the cup,
bow and edge zones.
These cymbals have a good stick feel and low
acoustic noise, which is essential for electronic
drums when used for private practice. In addition
to a very natural swaying motion, they also have
the “choke” function 360-degrees around
the edge. You can even mute the cymbal before
striking it - a DTX exclusive feature!
The DTX522K also features our professional
3-zone cymbal pads, which can
express a different sound in each of the cup,
bow and edge zones.
These cymbals have a good stick feel and low
acoustic noise, which is essential for electronic
drums when used for private practice. In addition
to a very natural swaying motion, they also have
the “choke” function 360-degrees around
the edge. You can even mute the cymbal before
striking it - a DTX exclusive feature!
Updated Practice Functions With Scoring
New drum training functions are included to challenge you no matter your current skill level every time you practice. Working with these tools will help you improve the most important skills for drumming from rhythmic timing to pad accuracy and endurance. The system will even generate a score so you can track your progress as you improve.
New Design Offers Versatile Trigger and Upgrade Options
The DTX502 module is perfect for use in a ‘hybrid’ kit with your acoustic drum hardware, and can be
expandedwith four additional pads or triggers. Pad upgrades let you build your dream kit as your skills
improve. USB connectivity lets you connect to a PC.
Your original WAVE can be imported.
Up to 12sec (sampleing rate 44.1kHz, 16bit, mono) , 20 files
(NOTES: The internal memory of DTX502 is also shared by external MIDI file, if you load for example
"Song Beat" data, as well your original WAVE file. )

The DTX502 module is perfect for use in a ‘hybrid’ kit with your acoustic drum hardware, and can be
expandedwith four additional pads or triggers. Pad upgrades let you build your dream kit as your skills
improve. USB connectivity lets you connect to a PC.
Your original WAVE can be imported.
Up to 12sec (sampleing rate 44.1kHz, 16bit, mono) , 20 files
(NOTES: The internal memory of DTX502 is also shared by external MIDI file, if you load for example
"Song Beat" data, as well your original WAVE file. )
Spek
Konfigurasi
Modul Pemicu
DTX502
Sistem Rack
RS502
Kumpulan Pad
DTP522
Modul Pemicu | DTX502 | |
---|---|---|
Sistem Rack | RS502 | |
Kumpulan Pad | DTP522 |
Ukuran/Berat (Modul Trigger)
Dimensi Berat
251 mm
Lebar
130 mm
Kedalaman
48 mm
Berat Berat
610 g
Dimensi | Berat | 251 mm |
---|---|---|
Lebar | 130 mm | |
Kedalaman | 48 mm | |
Berat | Berat | 610 g |
Tone generator
Polyphony Maksimal
32 notes
Suara
Drum and percussion: 691,Melodies: 128
Efek
Reverb: 9, Master EQ: 2 bands
Perangkat Drum
Preset: 50 User: 50 (Total memory capacity of 1MB.)
Polyphony Maksimal | 32 notes | |
---|---|---|
Suara | Drum and percussion: 691,Melodies: 128 | |
Efek | Reverb: 9, Master EQ: 2 bands | |
Perangkat Drum | Preset: 50 User: 50 (Total memory capacity of 1MB.) |
Sequencer
Kapasitas Not
Approx. 104,000 Notes (Total memory capacity of 1MB.)
Resolusi Not
96 ppq (parts per quarter note)
Tipe Perekam Lagu
Real-time replace
Susunan Lagu
1 track
Lagu
Demo: 1, Practice: 37, Pad: 22, User: 40
Format Sequence
Proprietary, SMF format 0/1
Kapasitas Not | Approx. 104,000 Notes (Total memory capacity of 1MB.) | |
---|---|---|
Resolusi Not | 96 ppq (parts per quarter note) | |
Tipe Perekam Lagu | Real-time replace | |
Susunan Lagu | 1 track | |
Lagu | Demo: 1, Practice: 37, Pad: 22, User: 40 | |
Format Sequence | Proprietary, SMF format 0/1 |
Klik
Tempo
30 to 300 BPM, Tap Tempo supported.
Ketukan
1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
Waktu
Accent, Quarter note, Eighth note, Sixteenth note, Triplet
Fungsi Training
Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate,
Part Mute, Fast Blast
Tempo | 30 to 300 BPM, Tap Tempo supported. | |
---|---|---|
Ketukan | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 | |
Waktu | Accent, Quarter note, Eighth note, Sixteenth note, Triplet | |
Fungsi Training | Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fast Blast |
Lain-lain
Sambungan
OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone),
Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch),
Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger),
HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini),
PHONES (Standard stereo phone), USB TO HOST
Aksesori
Power adaptor (PA-130), Module holder, Module holder fastening screws x2, Owner's Manual
Sambungan | OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch), Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger), HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), USB TO HOST |
|
---|---|---|
Aksesori | Power adaptor (PA-130), Module holder, Module holder fastening screws x2, Owner's Manual |
Audio Import
Contoh
20 waves (maximum)
Contoh Data Bit
16 bits
Contoh Waktu * Mono/Stereo
44.1kHz: 12 sec (mono)
Contoh Format
WAV, AIFF
Harga Khusus Transaksi Online:
Transfer,atau transaksi di web
Kontak resmi penjualan Online kami hanya:
LINE : braga_music
BBM :59FAF160
WHATSAPP : 087825692703
Contoh | 20 waves (maximum) | |
---|---|---|
Contoh Data Bit | 16 bits | |
Contoh Waktu * Mono/Stereo | 44.1kHz: 12 sec (mono) | |
Contoh Format | WAV, AIFF |
