SET 400

SET 400

INFORMASI PRODUK

Merk
:
Yamaha
Tipe produk
:
SET 400
Harga
:

Rp 10.580.000

Rp 8.464.000

0

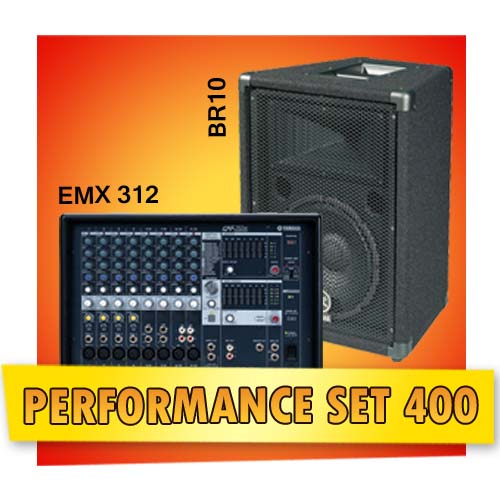

PERFORMANCE SET 400 terdiri dari :

Terdiri dari :



  • Speaker BR 10 x 2 Unit



Specifications

Woofers 10"
Tweeter (diaphragm) 1" titanium
Frequency Response (-10dB) 65Hz-20kHz
Power Handling (noise*, program, peak) (*-EIA RS-426) 125/250/500 Watts
Nominal Impedance 8 ohms
Sensitivity (1 W, 1m) 96dB
Dimensions W x H x D (approx) 14 3/4" x 21" x 12 3/4"
Weight (lbs.) 31.5
  • Powered Mixer EMX 312 x 1 unit

General Specifications

Maximum Output Power @ 0.5 % THD at 1 kHz 300 W/4 Ω; 190 W/8 Ω
Frequency Response -3, 0, 1 dB 20 Hz-20 kHz, ref to the nominal output level @ 1 kHz
Total Harmonic Distortion Less than 0.5 % (THD+N) +14 dB @ 20 Hz, 1 kHz, 20 kHz, GAIN control: all nominal
Hum & Noise Equivalent Input Noise, -115 dBu, Rs = 150 Ω CH 1-4 MIC/LINE: MIC
Crosstalk -65 dB @ 1 kHz
Input Connectors CH 1-4: XLR and Phone; CH 5/6, 7/8: XLR and Phone; CH 9/10, 11/12: XLR and Pin
CH EQ HIGH, MID, LOW
Phantom Power 15 V
Graphic Equalizer 7 Band (125, 250, 500, 1 k, 2 k, 4 k, 8 kHz): Main (Stereo) and Monitor
Digital Effects SPX Digital Multi Effector (24 bit AD/DA, 32 bit Internal Processing): 16 Programs
Power Amp Mode Main L/R, Main (L+R)/Monitor
Foot Switch On/Off
Dimensions (W x D x H) 442 x 274 x 286 mm (17-3/8" x 10-3/4" x 11-1/4")
Weight 10 kg (22 lbs.)
Power Requirements 120 V 60 Hz
Power Consumption 400 W


INPUT CHARACTERISTICS

Input TerminalsMIC/LINEActual Load ImpedanceFor Use With NominalInput level
Sensitivity *2PositionMax. before clip
CH INPUT 1-4 XLR
*3
MIC 2 kΩ 50-600 Ω Mics -60 dBu
(0.69 mV)
-35 dBu
(13.8 mV)
-15 dBu
(138 mV)
  LINE -30 dBu
(21.8 mV)
-5 dBu
(436 mV)
+15 dBu
(4.36 V)
  Phone
*4
MIC 6 KΩ 600 Ω -50 dBu
(2.18 mV)
-25 dBu
(43.6 mV)
-5 dBu
(436 mV)
  LINE -20 dBu
(69.0 mV)
+5 dBu
(1.38 V)
+25 dBu
(13.8 V)
CH INPUT 5/6, 7/8 XLR
*3
- 2 kΩ 50-600 Ω Mics -60 dBu
(0.69 mV)
-35 dBu
(13.8 mV)
-15 dBu
(138 mV)
  Phone
*5
- 10 KΩ 600 Ω Lines -20 dBu
(69.0 mV)
+5 dBu
(1.38 V)
+25 dBu
(13.8 V)
CH INPUT 9/10, 11/12 XLR
*3
- 2 kΩ 50-600 Ω Mics -60 dBu
(0.69 mV)
-35 dBu
(13.8 mV)
-15 dBu
(138 mV)
  RCA
Pin
- 10 KΩ 600 Ω Lines -20 dBu
(69.0 mV)
+5 dBu
(1.38 V)
+25 dBu
(13.8 V)

*1 0 dBu is referenced to 0.775 Vrms.
*2 Sensitivity is the lowest level that will produce an output of +4 dB (1.23 V), or the nominal output level when the unit is set to maximum level. (All level controls are at
maximum position.)
*3 XLR-3-31 type connectors are balanced. (1=GND, 2=HOT, 3=COLD)
*4 Phone Jacks are balanced. (Tip=HOT, Ring=COLD, Sleeve=GND)
*5 Phone Jacks are unbalanced.



OUTPUT CHARACTERISTICS

Output TerminalsActual Source ImpedanceFor Use With Nominal Output levelConnector
NominalMax. before clip
SPEAKER OUT 0.1 Ω 4 Ω Speakers EMX512SC 125 W 500 W [A1, B1] SPEAKON
[A1, A2, B1, B2] EMX312SC 75 W 300 W [A2, B2] Phone Jack *2
  EMX212S 50 W 200 W
MAIN OUT [L, R] 600 Ω 10 kΩ Lines - +4 dBu (1.23 V) +20 dBu (7.75 V) Phone Jack *2
EFFECT OUT 600 Ω 10 kΩ Lines - +4 dBu (1.23 V) +20 dBu (7.75 V) Phone Jack *2
MONITOR OUT 600 Ω 10 kΩ Lines - +4 dBu (1.23 V) +20 dBu (7.75 V) Phone Jack *2
REC OUT [L, R] 600 Ω 10 kΩ Lines - -10 dBV (316 mV) +10 dBV (3.16 V) RCA Pin Jack

*1 0 dBu is referenced to 0.775 Vrms. 0 dBV is referenced to 1 Vrms.
*2 Phone Jacks are unbalanced.

Cicilan 3x : 2.525.366






Cocok untuk kebutuhan meeting, presentasi, penyanyi atau gitaris solo dan beberapa jenis kegiatan skala kecil lainnya yang juga memerlukan sound system. Dan juga cocok untuk kebutuhan sistem dengan portabilitas dan mobilitas tinggi.
