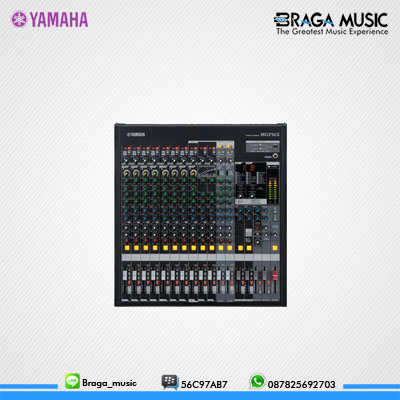

MGP16X

MGP16X

INFORMASI PRODUK

Merk
:
Yamaha
Tipe produk
:
MGP16X
Harga
:

Rp 7.980.000

Rp 7.480.000

0



Specs

Outline

Mixing capabilityMixing channels 16 Line Inputs (8 mono and 4 stereo)
GROUP 4 GROUP Buses + ST Bus
AUX 2 AUX Sends + 2 FX Sends
Input channel functions Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
On-board processors FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)
I/OMic inputs MIC: 10
Phantom power 48V phantom power per channel
Line inputs LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo
Digital I/O USB Audio USB IN/OUT: iPod, iPhone exclusive

General specifications

Total harmonic distortion 0.02% (20Hz-20kHz@ +14dBu)
Frequency response +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Hum & noise levelEquivalent input noise -128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Residual output noise -102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Crosstalk -74dB @ 1kHz
Power requirements 100-240V 50Hz/60Hz
Power consumption 55W max
DimensionsW 447mm
H 143mm
D 495mm
Net weight 9.0kg
